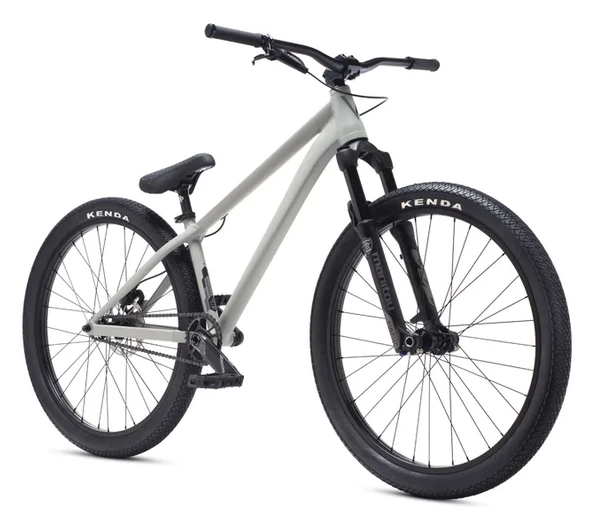

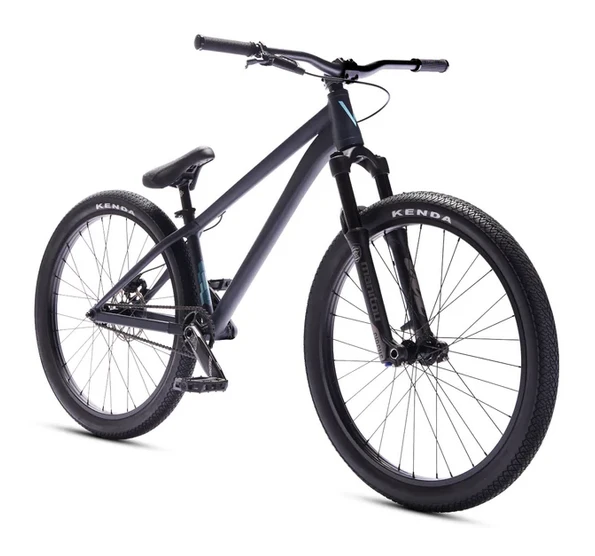

Verde Vertex 26″ Dirt Jump Bike

The Vertex is ready for a high level of riding right out of the box!  The new Verde Vertex 26″ Dirt Jump Bike features a 6061 Aluminum frame with a CNC machined 1.5″ tapered head tube.

Frame Spec

• Frame: 6061 series aluminum w/ CNC machined 1.5” tapered head tube, internal cable routing, Euro BB with chainstay yoke, and custom CNC machined dropouts
• Top Tube Length: 22.25” (22.97” effective)
• Chain Stay Length 15.25”
• Head Tube Angle 69º
• Seat Tube Angle 72º
• Bottom Bracket Height 10.5”
• Standover Height: 12.5”



Parts Spec

• Fork: Manitou Circus Expert, 100mm travel, 41mm offset, 1.5” taper
• Bars: 6061 aluminum, 1” rise, 31” wide (787mm), 31.8mm clamping area
• Stem: Front load, 30mm reach
• Headset: Sealed internal, Zero Stack 44/56, 1-1/8” to 1-1/2” tapered
• Brake: SRAM Level T hydraulic disc
• Rotor: SRAM Centerline 160mm, stainless steel
• Lever: SRAM Level T hydraulic disc w/ hinged lever
• Rear Hub Alloy, fully sealed, 10mm (3/8”) axle, 14-tooth driver
• Front Hub: Alloy, fully sealed, 20mm thru-axle
• Sprocket: SRAM 30-tooth X-Sync 2 direct mount chainring
• Cranks: Truvativ Descendant 6K DUB, 165mm
• BB: SRAM DUB BSA, 73mm
• Chain: KMC Z-510, silver
• Pedals: DUO Brand Resilite platform
• Front Rim: 6061 aluminum, double wall, 32-hole
• Rear Rim: 6061 aluminum, double wall, 32-hole
• Spokes: 14G black w/ black nipples
• Front Tire: 26 x 2.25” Kenda 3-Sixty, 65psi
• Rear Tire: 26 x 2.25” Kenda 3-Sixty, 65psi
• Seat: DUO Brand Waves seat/post combo
• Seat Post: Alloy, 27.2mm diameter, 200mm length
• Seat Clamp: Alloy, quick-release
• Grips: Lock-on, 130mm
• Weight: 27.1 lbs
