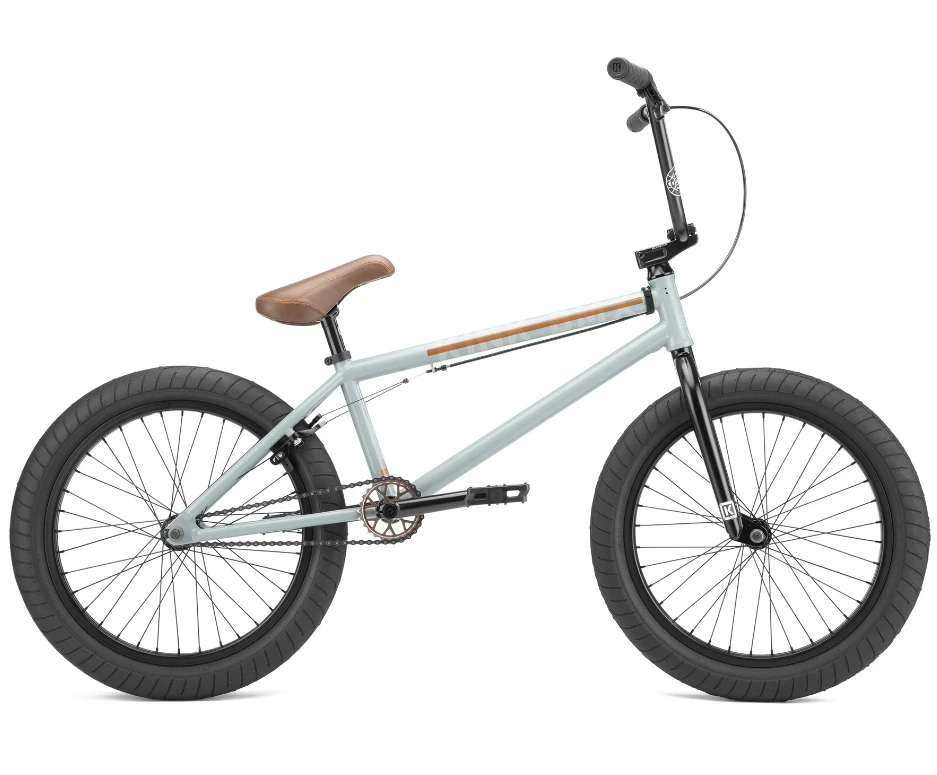

Kink Whip XL Bike 2022

The Kink Whip XL Bike 2022 is modeled after the popular Kink Whip, just bigger. Featuring a 21″ top tube and 9.25″ rise bars for those bigger riders. Also complimenting larger riders is the full 100% 4130 chromoly throughout the entire frame, fork and handlebar set. Kink kept thinking strong all the way down to the wheels by adding the double wall Mission Mylar rims. Wrapping up this sweet rig is the fully sealed bearings on all the components; headset, bottom bracket, and both front and rear hubs.

Toptube Length:	21″
Chainstay Length:	13.25″
Headtube Angle:	75°
Seattube Angle:	71°
Standover Height:	9″
Bottom Bracket Height:	11.6″
Fork Offset:	32mm



FRAME: Kink Whip XL 100% 4130 Chromoly	PEDALS: Kink Hemlock NF
FORK: Kink Stryker 100% 4130 Chromoly Tapered Fork Legs	CHAIN: Mission 410
BARS: Kink T925 9.25″ 100% 4130 Chromoly	SPROCKET: Mission Nexus 25T 6061 Aluminum

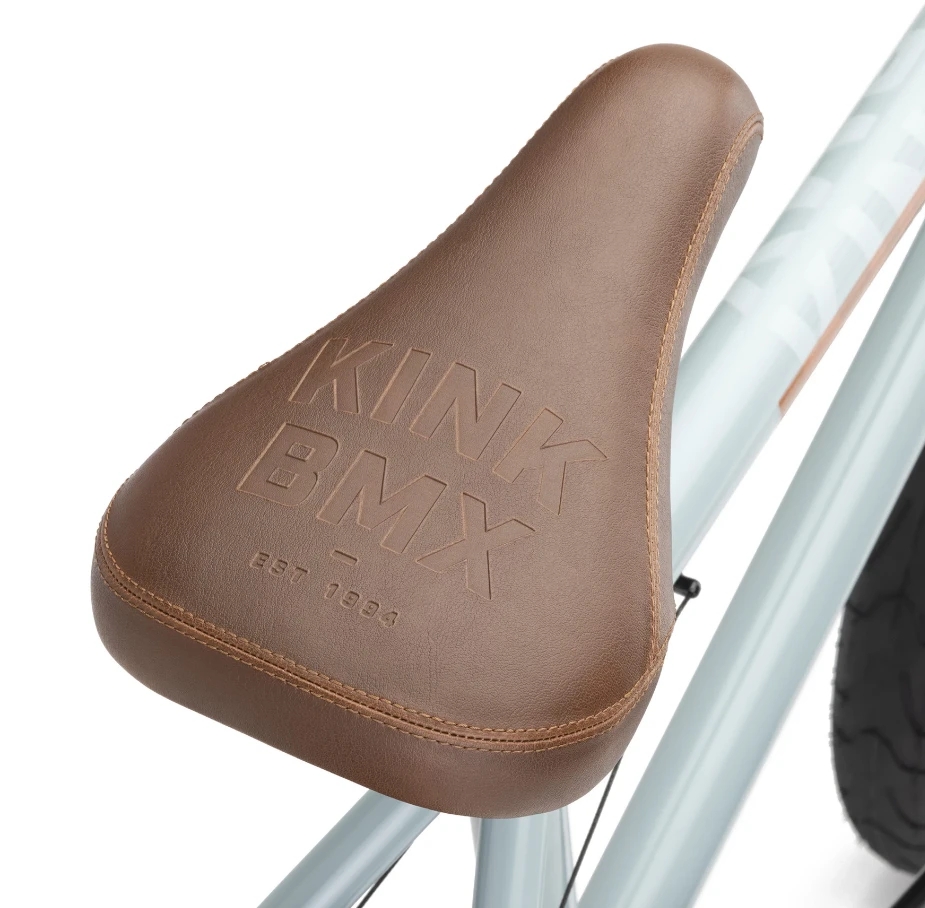

GRIPS: Kink Ace Flangeless	SEAT: Kink Bomber Stealth

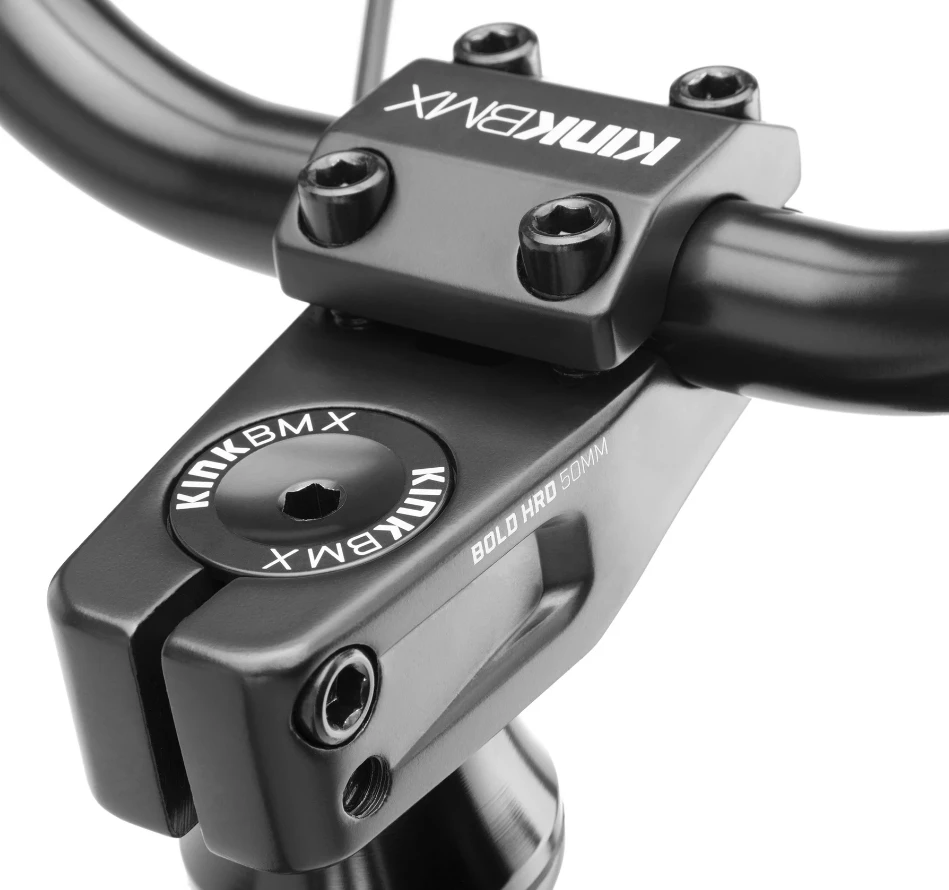

STEM: Kink Bold HRD 50mm	SEAT POST: Mission Stealth
HEADSET: Mission Sealed Integrated (41.8 x 45)	SEAT CLAMP: Mission Slim Clamp
BRAKE: LEVER Mission Token	FRONT HUB: Mission Foxtrot Sealed 3/8″ Axle
BRAKE CABLE: Mission L4 Linear	REAR HUB: Mission Engage Sealed Cassette 14mm
BRAKES: Mission Cease V2	DRIVER: 9T

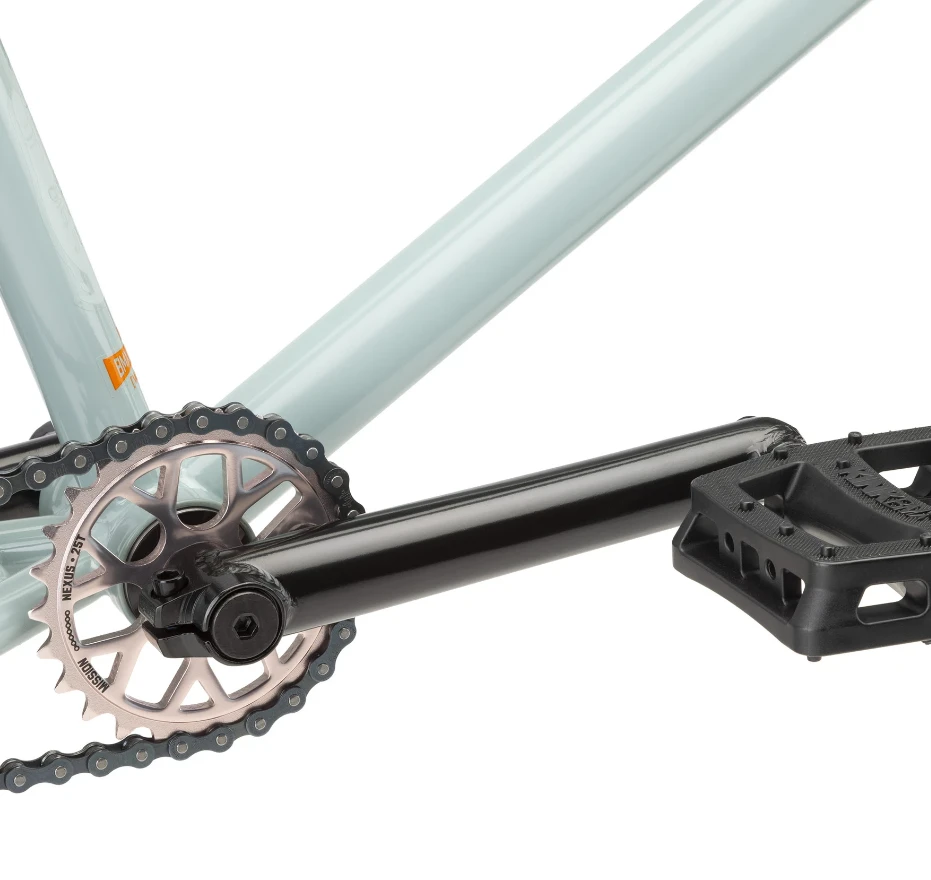

CRANKS: Kink Ridge 3pc Tubular Chromoly 170mm – 8 Spline	RIMS: Mission Mylar

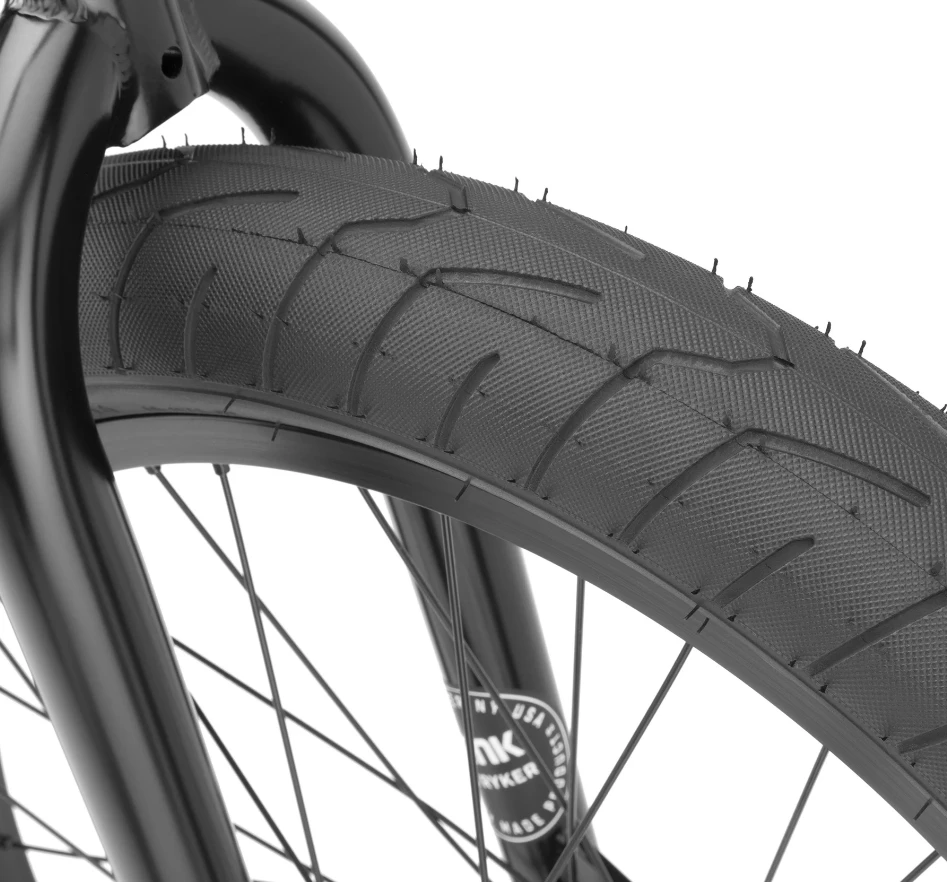

BOTTOM BRACKET: Sealed Mid 19mm	TIRES: Kink Sever 2.4″
PEGS:  N/A	WEIGHT:  27lb 12oz
