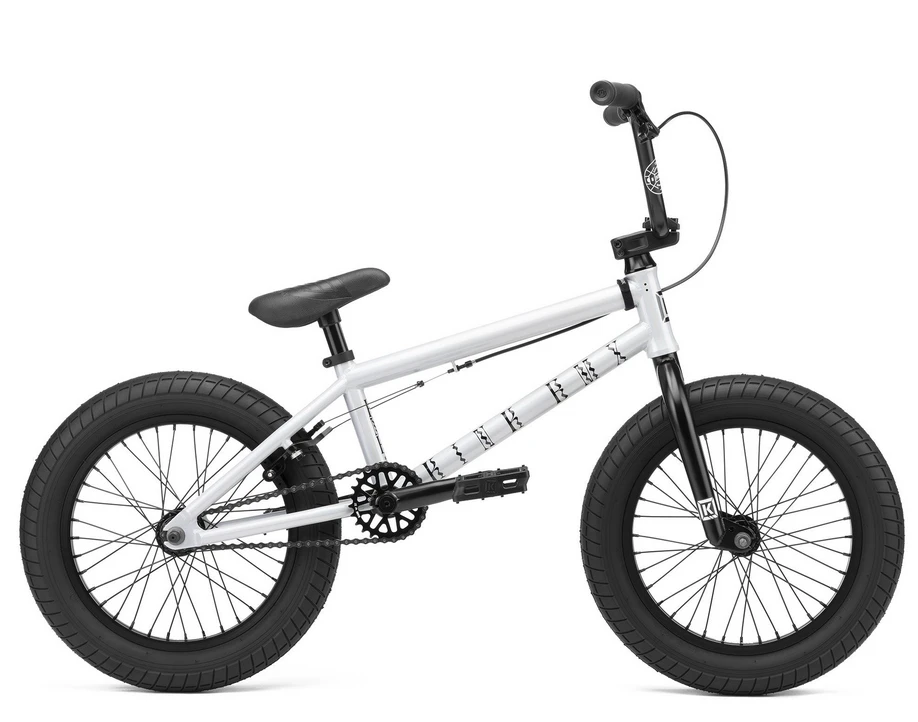

Kink Carve 16″ Bike 2023

Kink Carve 16″ Bike 2023

The Kink Carve may be built for little kids but it’s no toy. Ready for whatever your little ripper may throw at it the Carve is a lot of bike for the price. Street, ramps, dirt, the Carve is ready for it all and is the perfect size for the average 4 to 7 year old to get RAD on.

Toptube Length	16.5″
Chainstay Length	11.25″
Headtube Angle	74.5°
Seattube Angle	71°
Standover Height	6.75″
Bottom Bracket Height	9.75″
Fork Offset	32mm

FRAME: Kink Carve 100% Hi-Ten Steel	PEDALS: Kink Hemlock
FORK: Kink Stryker 4130 Chromoly Steerer Tapered Fork Legs	CHAIN: Mission 410
BARS: Kink T700 7” 100% Hi-Ten Steel	SPROCKET: Mission Rank 25T
GRIPS: Mission Helix Mini	SEAT: Mission Cypress Mini Combo
STEM: Mission Topload 40mm	SEAT POST: Mission Combo Steel Post
HEADSET: Mission Sealed Integrated (41.8 x 45)	SEAT CLAMP: Mission Slim Clamp
BRAKE LEVER: Mission Mini	FRONT HUB: Mission Covert Unsealed 3/8″ Axle
BRAKE CABLE: Mission L1 Linear	REAR HUB: Mission Function Semi-Sealed Cassette 14mm
BRAKES: Mission Cease V2	DRIVER: 9T
CRANKS: Mission Triumph 3pc Tubular Chromoly 140mm – 8 Spline	RIMS: Mission X7
BOTTOM BRACKET: Sealed Mid 19mm	TIRES: Mission Tracker 16×2.4″
PEGS:  N/A	WEIGHT:  22lb 9oz
